Persamaan Flyback Dan Data Pin


AKARI / FUJITEC China
BSC22 - 01N401 - TV 14 inch
BSC24 - 01N40TA – TV 20 Inch
BSC25 - 1194  - TV 14 inch
BSC25 - 4803T – TV 20 inch
BSC22 - 2007 (B+125) – TV 14 inch
BSC25 - N0803A – TV 20 inch
BSC24 - 01N365 – TV 21 inch
COL_B+115V_NC_AFC_GND_H_ABL_NC

AKARI FLAT SLIM
BSC25 - N0870 TV 21 INCH
NC_COL_NC_B+115v_NC_NC_GND_H_ABL_180V

AKIRA
JF0501 – 1901- TV 14 inch
BSC23 - N0114 –TV 21 inch
COL_B+115V_GND_185V_H_ABL_GND_16V_NC_24V

AKIRA Vertikal 0 gnd + 14v dan - 14v
JF0501 – 19959 – TV 21 inch
BSC25 - 4004A – TV 21 inch
BSC25 - N 0103 – TV 21 inch
BSC24 - 01N4004U – TV 21 inch
COL_B+115V_+14V_-14V_GND_H_AFC_ABL_NC_185V

AKIRA CT -  29TK9Ae
JF0501-2202
Col_B+125v_Afc/Nc_-12v_+12v_Gnd_H_Abl_Gnd_180v

AKIRA Slim
BSC29-N2477 – TV 29 inch
Col_180v_B+130v_Gnd_Nc(14v)_25v_Nc(Gnd)_Abl_H_Iner

AKIRA / FUJITEC IC8893CPBNG
BSC25 - 05N2135H – TV 21 inch
BSC25 - N0379 – 21 inch
BSC25 - 3604V – TV 21 inch
BSC25 - 0235A – TV 21 inch
BSC25 - 4803T1 – TV 21 inc
COL_B+115V_NC_AFC_GND_H_ABL_180V
BSC22 - 68F03
BSC25 - N0449
BSC25 - Z601A
COL_B+115V_24v_AFC_GND_H_ABL_180V

ASATRON Slim
BSC25 - N1089D – TV 21 inch
Col_B+115v_+17v_Afc_Gnd_H_Abl_Nc_180v_-17v

AIWA 14 / 20 inch
84 - L83 - 606 -01
FTK 14B011
COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V

DETRON
154 - 164F – TV 13 inch
154 - 165D – TV 21 inch
JF0501 - 1212 – TV 20 inch
24v_14v_B+115V_H_AFC_ABL_GND_185V_NC_COL

SHARP

F0067PE – TV 14 inch
F0069PE – TV 20 inch
COL_B+115V_24V_16V_NC_AFC_GND_H_185V_ABL
F0147PE – TV 21 inch
COL_B+115V_GND_24V_12V_AFC_185V_GND_H_ABL
FA122WJ-B
COL_B+130V_GND_24V_NC_AFC_180V_GND_HT_ABL
FA061WJ-SA
COL_B+130V_GND_24V_12V_AFC_185V_GND_HT_ABL

SHARP  Wonder / Universe
F0193 – TV 14 inch  / F0194 – TV 21 inch
Col_B+115V_GND_40V_12V_AFC_185V_GND_H_ABL

SHARP :  Picollo, Expression, Alexander
BSC26 - 2631S / FA060 WJ – TV 14 inch
BSC21 - 2647S / F0229PE / FA061WJ – TV 21 inch
BSC21 - 2672S/ FA084WJ-B – TV 14 inch
COL_B+125V_GND_24V_NC_AFC_180V_GND_HT_ABL
BSC25 - 0214J Alexander Flat 21 inch
COL_B+125V_GND_24V_NC_AFC_180V_GND_HTR_ABL

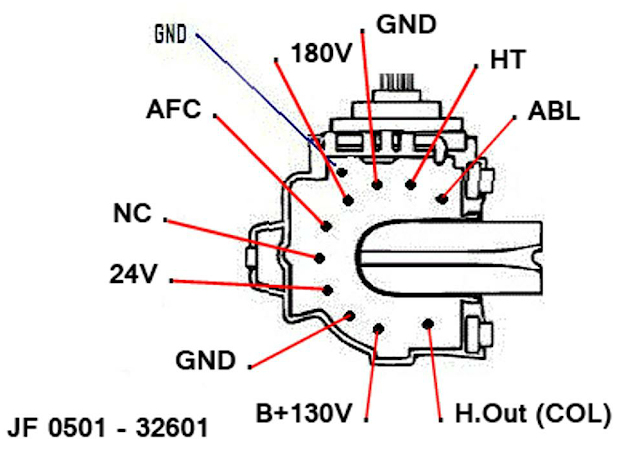

JF0501 - 32601 / FA071WJ – A – TV 21 inch
BSC25 - 0232A / FA104WJZZ – TV 21 inch
BSC24 - 2688S / FA113WJ - B – TV 21 inch
FA099WJ/ JF0501 - 32601 - TV 21 inch
Col_B+125V_Gnd_24V(nc)_12V_Afc(-12v)_185v_Gnd_H_ABL
FA100WJ / FA116WJ – TV 29 inch
Col_B+125v_Gnd_Nc(30V)_+14v_AFC(-14v)_180v_Gnd_H_Abl
 FA100WJZZ TV 29 inch
Col_B+125v_Gnd_NC_(+14v)_(-14v)_180v_Gnd_HT_Abl
FFA
SHARP Q-BEAT
FA093WJ-SA (TV14 INC)
COL-B+125V-GND-24V-NC(16V)-AFC-180V-GND-HT-ABL
FA060WJ-SA (TV14 INC)
COL_B+125V_GND_NC_12V+_AFC_12V_180V_NC_HT_ABL
BSC25-0216F = FA135 SHARP 14inch
COL_B+125_GND_24V_16V_AFC_180V_GND_HT_ABL

GOLDSTAR  /  LG  /  AKARI /  INTEL
154 - 177B
154 - 064P - TV 14 inch
154 - 194D - TV 21 inch
COL_180 V_B+115 V_GND_16 V_24 V_40 V_ABL_HT_AFC
154 - 374C – TV 29 inch
6174 - 8004A
6174Z - 6040X
MF6549
FCM - 20B058
COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC
154 -177E
COL_185V_B+90v_BOOST UP_25V_12V_GND_ABL_H_AFC

JVC
BSC25 – 0262 – TV 21 inch
COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND

JVC AV20NX
JF0501 - 3241 / QQ0189 – 001 – TV 21 inch
Col_B+115v_ AFC_-12V_+12V_Gnd_HT_ABL_185v_Gnd

FUJITEC
BSC22 - 2314H
JF0501 - 1903
FCM14A032
KFS 60844
COL_B+115V_180V_16V_24V_H_GND_ABL_AFC_NC
HITACHI FUJIAN
BSC25 - 0820
Col_B+115_Nc_Nc_25v_12v_Abl_Ht_Gnd_180v

PANASONIC
TLF 14695F
TLF 15610 F
TLF 15611 F
KFS 60844
Col_B+_Gnd_PS sink -_25v_Ht_185v_Abl_Nc_PS sink +
TLF 4N052 – TV 20 inch
Col_B+115v_Nc_24v_H_180v_Gnd_Gnd  (R2W 1 ohm)_16v_Abl
ZTF N82014B
Col_B+140v_Nc_+16v_Gnd_H_Gnd_ABL_-16v_ 180v
G4GAM3F2 – TV 21 inch
Col_B+90v_180v_Nc_Nc_Nc_Nc_Abl_Gnd_Ht

SANSUI
JF0501 - 1206
JF0501 - 1204
COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC

LG
6174Z - 6002U - TV 20 inch
COL_180V_B+115_GND_NC_24V_NC_ABL_HT_AFC
6174 - 6006E – TV 20 inch
6174Z - 6040C – TV LG Turbo Swing 21inch
Col_185v_B+115V_Gnd_-14v_+14v_Nc_ABL_H_AFC
6174V - 6006H – TV 21 inch Flat  Slim
BSC24 - 3366J – TV 21 inch Super Slim
BSC25 - N0329 TV 21 inch
154-177B – TV 21 inch
COL_185V_B+115V_GND_Nc_24V_Nc_ABL_H_AFC
6174Z - 5003A – TV 29 inch
BSC28 - N2334 – TV 29 inch
Col_B+115v_+14v_-14v_200v_Gnd_Nc_28v_ABL_H

6174Z-8005C
COL_180V_B+110V_GND_NC_24V_GND_ABL_HT_AFC
BSC23-3369L - T
V 14 inch
COL_180V_B+115_GND_12V_26V_NC_ABL_H_AFC

LG ultra Slim
BSC25-N1534 TV 21 inch Ultra Slim
BSC25 - N0363 – TV 21 inch
Col_180V_B+115V_Gnd_Iner_26V_Nc_Abl_H_afc
BSC26 - N2138 – TV 29 inch
Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H

TOSHIBA
TFB 4067 BD – TV 14 inch
TFB 4122 BD – TV 21 inch
TFB 4122 HY – TV 21inch
TFB 4125 CH – TV 21 inch
TFB 4213AG  - TV 21 inch Flat
TFB 4086A – TV 29 inch
COL_B+115V_185V_GND_NC_24V_12V_ABL_H_AFC

POLYTRON  /  DIGITEC
FCM 20 B 061N  - TV 20 inch
JF 0501 – 19577 – TV 21 inch
JF0501 - 19584 – TV 21 inch
Col_B+115V_Gnd_nc_185V_H_NC(25v)_Abl_+12V_-12V(afc)
JF0501 - 195913 – TV 21 inch
FTK - 21R011UN – TV 21 inch
Col_B+115V_Gnd_185v_Nc_H_25v_Bcl_12v_Afc

POLYTRON LAMA
FCK 14A006 – TV 14 inch
FCM2015H – TV 20 inch
FTK21R002  - TV 20 inch
NC_NC_GND_185V_16V_H_24V_ABL_B+115V_COL

POLYTRON FLAT SLIM
BSC25 - 0223N TV 21INCH
COL_B+115V_GND_
180V_NC_HTR_NC_ABL_12V+_12V-
JF0501-19587
DST2010-M32
COL-B+120V-GND-NC-180V-HTR-NC-ABL- 12V+_12V-_

SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V_AFC_H_24/40V_180V_GND_NC_ABL_B+125V_COL
FOK14A001 TV 21 inch Flat
16,5+_NC_H_16,5-_200V_GND_NC_ABL_130V_COL
FSV - 14A004C
FSV - 14A004H
FSA - 38031M
FSA - 38032M
FSA 173 B
AA26 - 002101A
+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL
FOK14B001 – TV 21 inch Flat
Col_NC_B+123V_NC_200V_Gnd_H_-16,5V_+16,5V_ABL
FUH29A001A – TV 21 inch Slim
Col_Nc_B+130v_Nc(widht)_200v_Gnd_H_-16,5v_+16,5v_Abl

SAMSUNG SLIM
FUH29A001 – TV 29 inch B+ 135v Flat
JF0501 - 91911 – TV 29 inch / FQH29A003 B+125v Slim
COL_NC_B+125V_200V_GND_H_-16,5V_+16,5V_ABL
FQH21A004 – TV 21 inch Slim
BSC25 - 0217G / AA26-00305A / FUH29A001B Slim B+125V - TV 14 inch
BSC25 - 0218N / AA26-00317A – TV 21 inch Slim
COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL

TELEVISI  China
BSC25 - N1534
COL_180V_B+115V_GND_INER_25V_NC_ABL_HTR_AFC
BSC25 - Z2109H
COL_NC_B+115V_GND_NC_NC_NC_ABL_H_AFC
BSC25 - Z603F
BSC25 - 4813A
BSC25 - N1003A
BSC25 - N0608
TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_NC(180V)
BSC24 - 014001D
BSC25 - N0321
BSC25 - N1634
BSC25 - Z1003
BSC25 - Z2705
BSC25 - Z2706
BSC25 - N0313
BSC25 - F1125A
TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_AFC

TELEVISI  China
BSC25 - 2004PR
COL_B+115v_NC_AFC_GND_H_ABL_NC_TP1_TP2
BSC24 - 01N4014K
BSC25 - T1010A
T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

TELEVISI  China
BSC26 - 3606A – TV 29 inch
Col_B+115V_NC_AFC_GND_H_ABL_T1_T2_T3
BSC28 - N2329 – TV 29 inch
BSC29 - T6018N – TV 29 inch
Col_TP2_B+115V_GND_185V_NC_NC_ABL_H_AFC
BSC26 - N0570 – TV 29 inch
BSC26 - N0670 – TV 29 inch
BSC27 - KLX29 – TV 29 inch
BSC26 - 01N – TV 29 inch

Tp1_Col_Tp2_B+_Nc_Tp3_Gnd_Ht_Abl_180v

TELEVISI CHINA (Plasma)

BSC25 - Z305A TV 21inc
Col_nc_B+115v_Gnd_nc_nc_nc_Abl_Htr_Afc

DIAMOND China
BSC24 - 2231HC
Col_B+115_40v_14v_Gnd_Afc_Abl_Ht_180v_Nc

SANYO Lama
L 40 B 15300 / L40B17100 – tv 21 inch(flat bisa)
Col _ B + _NC _180 V _AFC _abl _ABL _NC _HT_GND
JF0501-32611 / ILB4L40B09500 – TV 21 inch flat
JF0501-32639 – TV 21 inch SLIM
Col-B+115v_nc(lowb)_185v_Afc_nc_Abl_LowB(nc)_H_GND

SANYO
BSC26-2638S --TV 14 inch
Col_B+125V_T471H4_nc_T471H5_nc_ABL_T471H7_H_gnd
L40B14900 TV 14 INCH
COL_180V_AFC_GND_ABL_NC_HTR_GND

SANYO SLIM FLAT 29 inch
BSC26 - 2629S part no: 1LB4L40B07500 – TV 29 inch
BSC26 - 2670S / 1LB4L40808000 (Flat) – TV 21 inch
Col_B+140v_Nc_Video 185v_Afc_Nc_Abl_Low B_H_Gnd

TCL
BSC25 - 0299D – TV 21 inch
BSC25 - 0273F – TV 21 inch
JF0501 - 1914 – TV 21 inch
BSC25 - 0231
BSC25 - 0284C – TV 21 inch
BSC 66G
185V_COL_AFC_B+115V_NC_NC_ABL_GND_NC_H
BSC25 - 0211
JF0501 - 1909A
JF0501 - 1214
185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H
BSC25 - 0252S – TV 21 inch
Col_B+_NC_NC_NC_AFC_GND_ABL_200V_HT

THOMSON / SABA
FCK – 1410E18
B+115V_COL_ABL_GND_25V_GND_HTR_180V_12V

KONKA
BSC25 - 2023S – TV 14 inch
BSC25 – 0106 – TV 14 inch
BSC25 - 2666S – TV 21 inch
BSC25 - 0111 – TV 21 inch
COL_185V_B+115V_GND_AFC_14V_ABL_H_NC_NC
BSC25 - 0146 – TV 21 inch
Col_185v_B+115_Gnd_Nc_Nc_Abl_Ht_Gnd_Afc

SONY 21 inch
8-598-858-00
8-598-831-00
8-598-811
1-453-284-11
8-598-960-00
COL_B+_200V_H_GND_-13V_GND_+13V_NC_ABL

SONY  Trinitron
1 - 439 - 423 - 32 – TV 29 inch
H1_H2_180v_B+_Col_14V_Abl_Nc_26v_Nc_Gnd

RCA
6174Z - 8006A  - TV 14 inch
B+110_Col_6.5V_Gnd H_H_Abl_-12V_Gnd_180v_+12v

PHILIPS
JF0501 – 9185 – TV 29 inch
BSC25 - N2319
BSC25 - N2911
Col_B+125v_180v_Afc(-12v)_H_8v_12v_ABL_45v_Gnd

SANKEN
BSC24 - 01N4004U – TV 21 inch
JF0501 – 19959 – TV 21 inch
BSC25 - N 0103 – TV 21 inch
Col_ B+115_+14V_-14V_Gnd_Ht_Afc_Abl_Nc_180V
